ข้อมูลทางเทคนิค

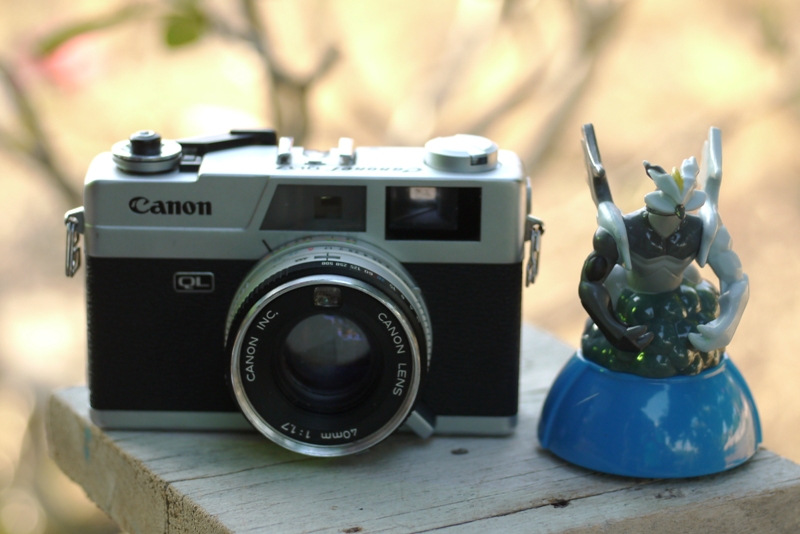

Type35mm Lens-Shutter rangefinder camera with shutter speed-priority EE
Picture Size 24 x 36 mm
Lens 40mm f/1.7 (6 elements in 4 groups)
ShutterCopal with B, 1/4 sec. to 1/500 sec., X-sync. Built-in self-timer. Hot shoe and German socket for automatic flash.
ViewfinderCoincidence rangefinder integrated with reversed Galilean viewfinder. Automatic parallax correction with projected frames and marked finder. 0.6x magnification. On the right within the image area are the aperture scale, meter needle, overexposure and underexposure warnings, and battery check zone.
EE CdS cell for shutter speed-priority EE. Manual exposure enabled by disabling AUTO. Metering range of EV 3.5 – 17 (at ISO 100). Film speed range of ISO 25 – 800.
Power SourceOne 1.3 V H-D mercury cell. Battery check provided.
Film Loading &
AdvanceAfter opening camera back, align film leader at mark then advance to first frame with Quick Loading (QL) system. Advances with camera-top lever’s 120° single stroke. Ready position at 26°. Partial strokes not enabled.
Frame CounterCounts up. Resets automatically when camera back is opened.
Film RewindCamera-top crank
Dimensions &
Weight120 x 75 x 60 mm, 620 g
