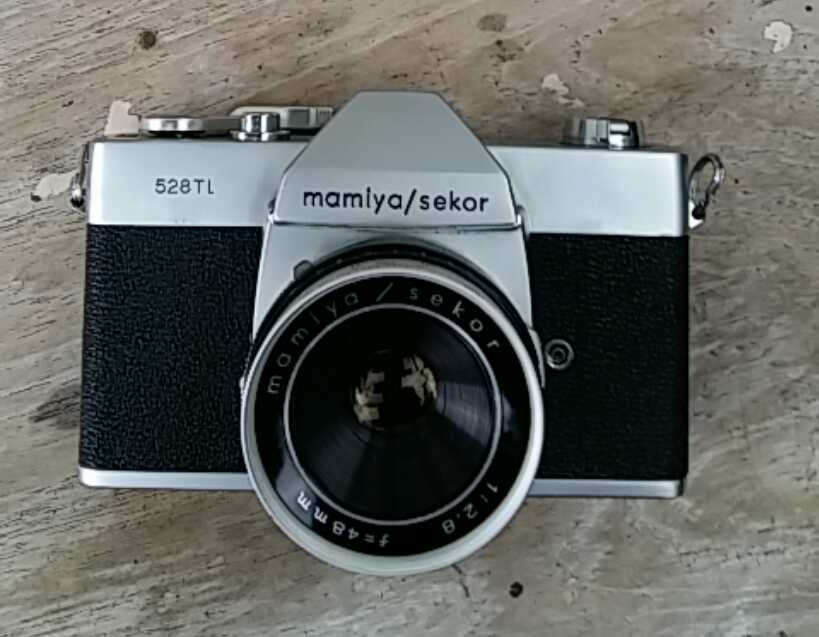

MAMIYA 528TL MAMIYA/SEKOR 48MM.F2.8

กล้องสภาพสวย ริ้วรอยมีบ้างแบบบางๆครับ กล้องทำงานเต็มระบบ ช่องมอง และช่องใส่ฟิล์มสะอาดครับ ชิ้นเลนส์ใส ไม่มีรา ไม่มีฝ้า

สินค้าใช้งานได้เลยครับ

**ข้อมูลทางเทคนิค***

Lens: Mamiya/Sekor 48mm f/2.8 3 elements in 3 groups; filter thread: 52mm; serial no.none

Mount: Fixed lens

Aperture: f/2.8-f/2 ; setting: manual ring on the lens-shutter barrel, for Auto set the ring to "A"

Focus range: 0.8-10m +inf

Focusing: Fresnel matte screen with central microprism and collar

Shutter: Copal-X central leaf shutter; speeds:1/15-1/500 +B [1]

Setting : ring and scale on the lens-shutter barrel

Shutter release: on the top plate, w/ cable release socket

Cocking lever: also winds the film, rapid, long stroke, on the top-plate

Frame counter: window beside the cocking lever, auto reset, advance type

Viewfinder: SLR pentaprism

Mirror: instant return

Exposure meter: CdS cell exposure meter, behind the lens, a spot meter with approximately a 10-degree center spot; needle visible in the viewfinder

Film speed range: 10-400 ASA setting: lever and scale on the bottom of the lens-shutter barrel

Metering range: EV 7-17 in 100 ASA

Exposure setting: Shutter priority Auto, set the speeds to desired one, then set the aperture ring to "A"; aperture scale is visible in the finder w/ over and under exposure indexes

Re-wind lever: folding crank type, on the top plate

Re-wind release: button on the bottom plate

Flash PC socket: on the front of the camera

Sears Auto 35TL

Hot-shoe

Back cover: hinged, open by a latch on the left side of the camera

Engraving on back cover: Mamiya Camera Co. Ltd.

Tripod socket: ¼"

Strap lugs

Body: metal; Weight: 683g

Battery: 1.5 V silver 676 (accepts GPA76 alkaline)

Battery chamber: on the bottom plate

On/off switch: none
